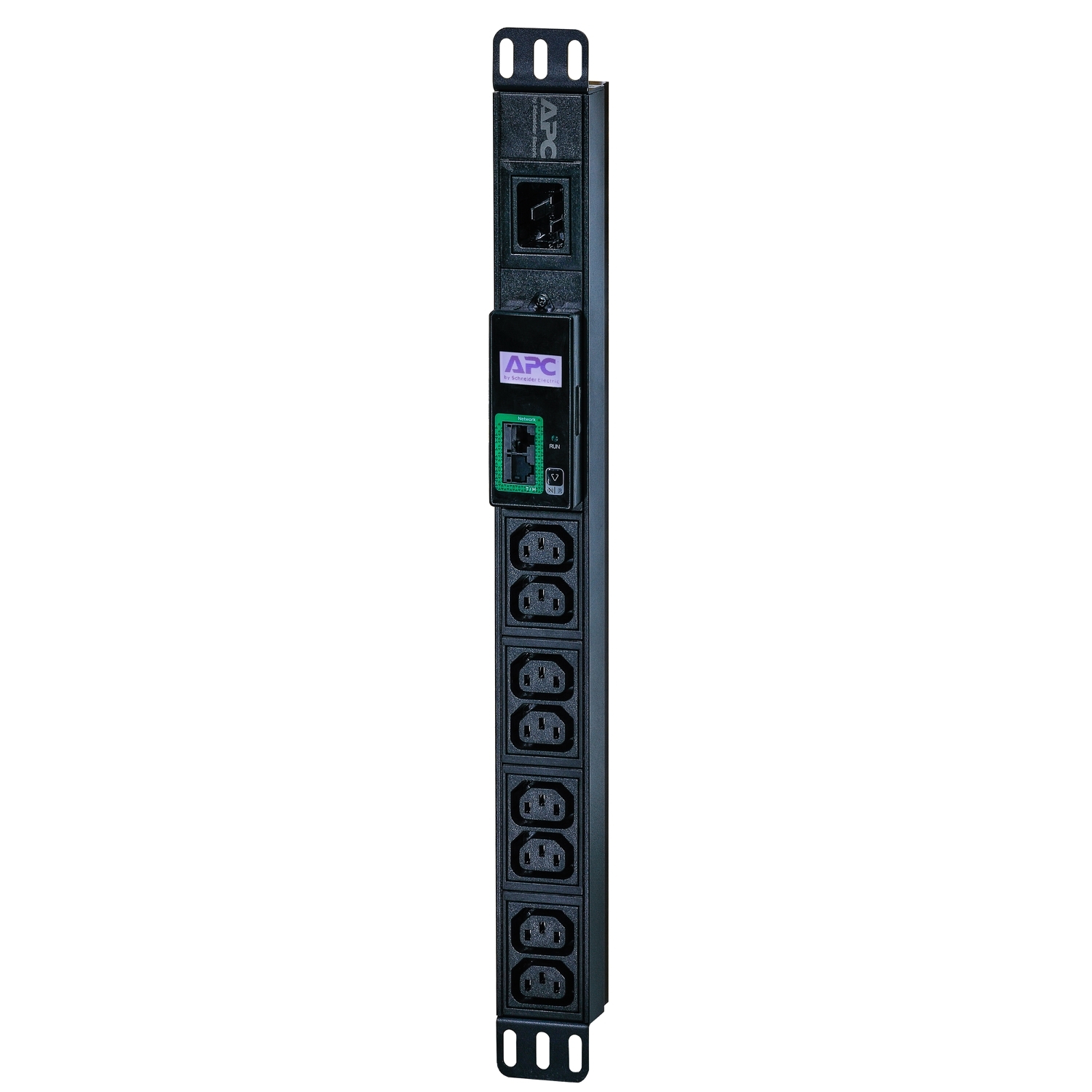

EPDU1016M Easy PDU, Metered, 1U, 16A, 230V, (8)C13
EPDU1016M Easy Metered Rack Power Distribution Units (Rack PDU) provide real-time remote monitoring, power management of connected loads, and much more features than the average power strip.
Includes: Cable, Horizontal mounting brackets, Installation guide, User manual

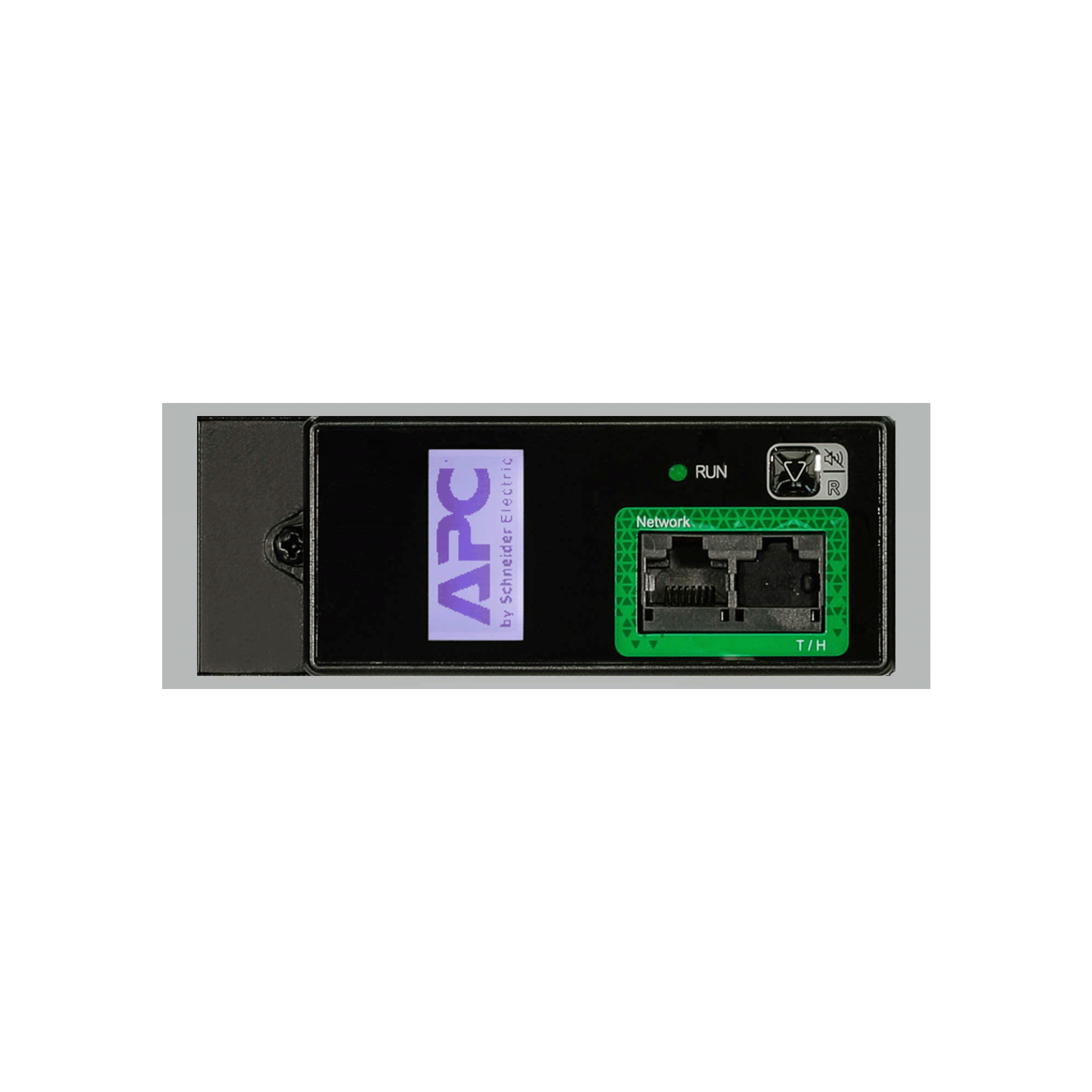

- Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Easy Metered Rack PDU Features & Benefits
Availability
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.

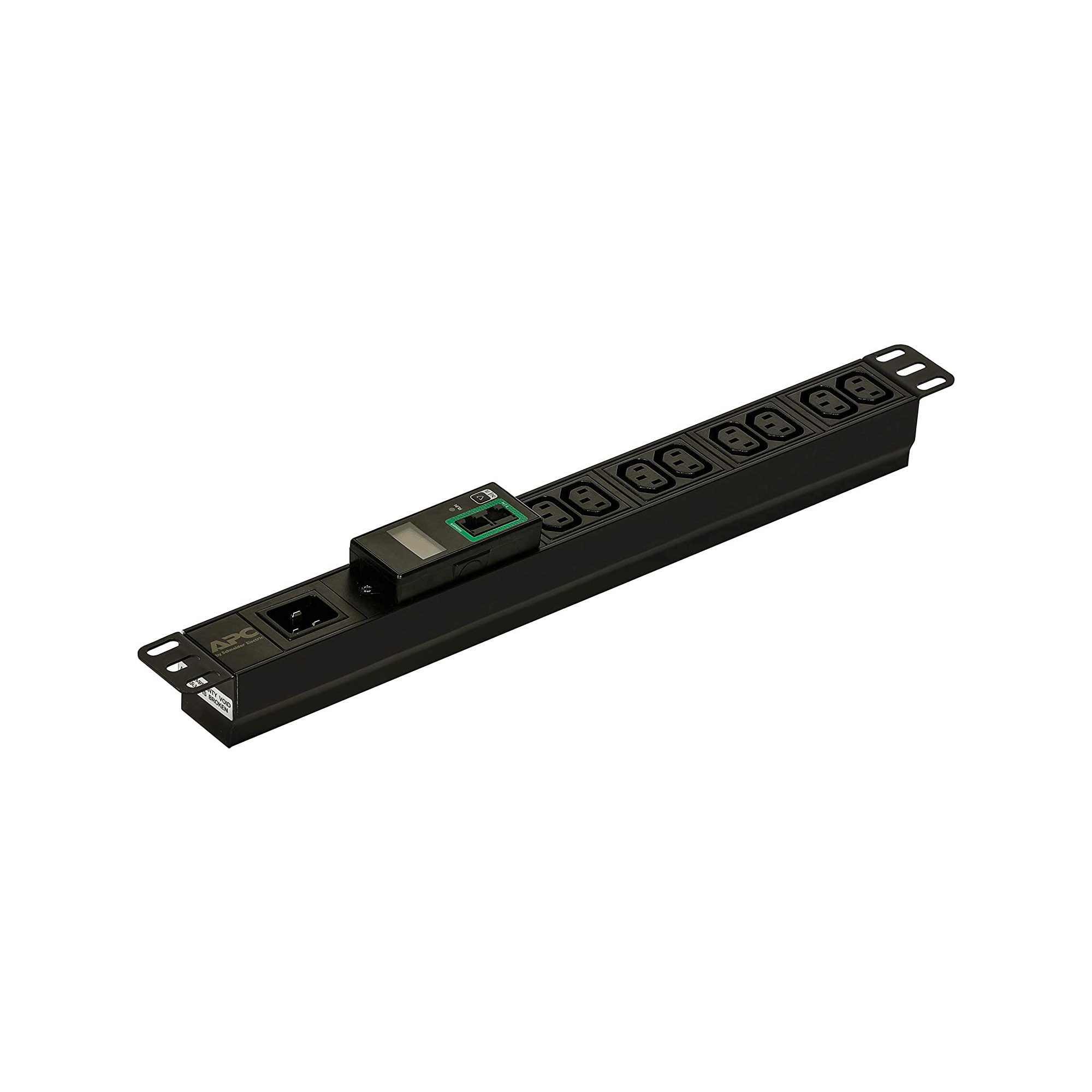

Rack-Mountable
Includes horizontal, vertical, and tool less-mount varieties. Puts power where it is needed most – in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Specifications
| Physical properties |
| Dimensions (W x H x D) |
482 x 44 x 44 mm |
| Mounting |
| Rack mounting |
Horizontal |
| General |
| Input connection |
IEC 320-C20, 230 V |
| Individual outlet metering |
No |
| Individual outlet control |
No |
| Managed |
Yes |
| Input phases |
1-phase 230 V |
| Load capacity (max.) |
3680 W |
| Direct connection to UPS |
Yes |
| Product type |
Power distribution unit |
